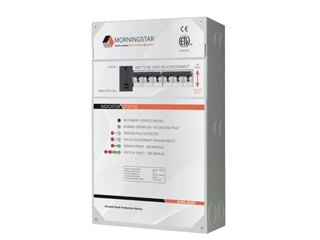

600VDC DC leakage protector

600VDC DC leakage protector

Operation description of GFPD-600V
Leakage fault protection is used to prevent unknown current sources in electrical system. It is very important to detect any unknown current and then block the current loop.
Any current imbalance in the circuit indicates that there is a ground fault. After MorningStar's GFPD-600V device detects this situation,
It will be disconnected from the positive and negative stages of the circuit to ensure the interruption of the fault current.
LED light and sound alarm
A two-color LED lamp and buzzer display working status, ground fault events, module / wiring faults, and battery low voltage, etc.
The method of using the test button
The test button has 3 functions:
1. when GFPD-600V is in normal mode, press the test button to conduct a system check: turn on the circuit breaker, the red light is always bright, and the beep will be heard.
2. when a ground fault occurs, press the test button to reset the GFPD-600V to return to normal.
3. when the wiring error / circuit breaker opens the alarm, press the test button to restore the GFPD-600V to normal.
Quality assurance
We promise that the GFPD600V leakage protector will have a 5 year warranty period. Since the end user purchased the product, due to defects in material and process,
We will choose to repair or replace defective products.
Main technical parameters
Electrical parameters:
Photovoltaic input maximum voltage....600 Vdc
Photovoltaic input maximum current....50 Adc
GFPD-150V supply voltage range.....10-72 Vdc
The ground fault trip current threshold... 300 mA+/- 10%
Consume............ 1W
Transient surge protection...... battery 3000W, signal port 1500W
Electronic protection
Polarity reversal protection
Disconnect the feedback signal circuit to detect the feedback circuit of the disconnection.
Detection of mechanical parameters
Size (in/cm).......14.18.7 * 4.2/35.7 * 22.1 * 10.6
Protection level...... 1 types of indoor installation and use
... weight.......8.9lbs/ 4.04kgs
Hole diameter...... 0.79 inches (20.0mm)
Switch power supply sticker........1/4 in. -20 stud stud
Switch power supply nut recommended torque....30-35 in-lb (3.4-4 Nm)
The recommended torque on the sensing part interface is.....3.5in-lb (0.4Nm).
The lowest temperature class of induction part is....75 C.
Battery connecting line.....33ft. double core 18AWG standard.
Battery holder...... straight row.
Battery insurance........5A, minimum voltage 125Vdc
> trip signal wiring harness.......8.5/0.5 double core 18AWG standard copper wire or aluminum wire
Feedback jumper..........2 4.5 inch 600V single core standard copper wire or aluminum wire.
Feedback wire harness...... 3.5/6.5 inch 600V double core 14AWG standard copper or aluminum wire
Install (GFPD-150V module)....35mmDIN guide or 2 #6-32 screws panel installation.
Environmental parameters
Working temperature range.....-40 C - +60 C
Storage temperature range...... -55 C - +85 C
Humidity range.......0-100%
... tropical adaptation...... PCB board protective coating
Authentication:
The grounding fault protection devices comply with the requirements of national electrical code 690.5 and 690.35 (c).
ETL certification, UL1741 and CSA C22.2 NO.107.1-01 certification
Electromagnetic compatibility test through immunity, radiation and safety
15 part authentication of the B class of FCC
CE
RoHS
ISO 9000
